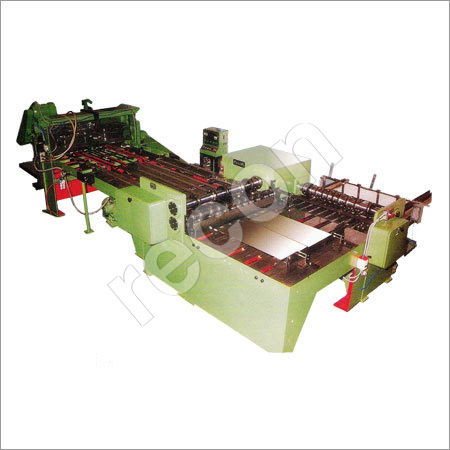

Duplex Gang Slitter

Duplex Gang Slitter
Duplex Gang Slitter
Product Code : 08
Product Description

Duplex Gang Slitter

We have gained immense recognition in this domain for manufacturing and exporting Duplex Gang Slitter. Our auditors follow strict quality control methods, which are meant to cater the international standards of quality. This Duplex Gang Slitter machine finds their application in slitting of tinplate and aluminum sheets into strips and body blanks. Manufactured to perfection, our range of slitting machine is known for its striking features like durability, less maintenance and optimum performance.

 Salient features & mode of operation

  • Comprises of two Gang slitters operating in tandem, first slitter to trim 2 sides and slit into strips and second slitter to slit the strips into blanks
  • Ideal for the production of body blanks out of full sheets for can bodies
  • Accurate edge alignment of printed sheets with very precise cam operated side lays in both stages
  • Perfect squareness of cut blanks due to very accurate back edge registration in both the stages
  • Transfer from first stage slitter to second stage smooth through guide driven rollers
  • Sheet is held pressed down to the table while slitting with hold down rollers and magnets
  • In the second stage the cut stepped are separated by stepped level plates
  • Chain dogs of different heights carry strips from stepped plate forward
  • Final presentation of strips in the 2nd cut to the cutter by highly precise squaring pawls
  • Squareness of cut blanks can be adjusted by easy setting of squaring pawl position
  • Cutter holders are specially designed to mechanically lock on he shaft by quick setting screw
  • Cutters can be shifted to any position very easily and very quickly
  • Trimmed scrap diverted to scrap trays without mixing with good blanks
  • Placing the sheets on 1st slitter manual or by automatic sheet feeder as ordered
  • Automatic stacker trolley can be ordered if required for smooth stacking & transfer

Technical Data

Max sheet size

1000 x 1000 mm

Min. sheet size

650 x 650 mm

Sheet thickness

0.15- 0.30 mm

Output

Maximum 30 sheets/minute

Min Strip width after 1st cut

150 mm

Min. width after 2nd Cut

48 mm

Power requirement

Motor 3 HP, 415V, 50 Hz

3 Phase, AC supply or as ordered

Net/Gross weight

Sheet feeder 1200/1400 kgs

1st slitter 2200/2450 kgs

2nd slitter 1500/1700 kgs

Packed dimensions

3300 x 2190 x 2090 mm

3200 x 2190 x 1030 mm

2440 x 2190 x 1030 mm
